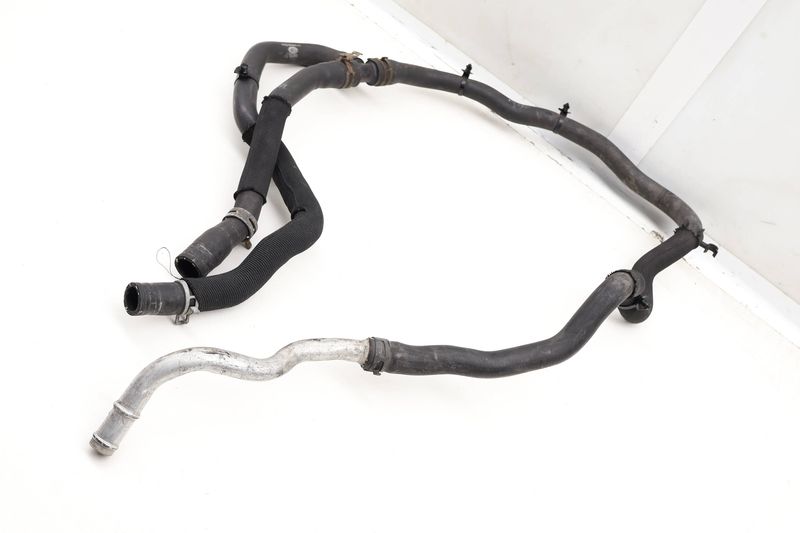

2010-2014 Land Rover LR4 Coolant Hose / Line Assembly AH228K534AC

OEM Part #: AH228K534AC

This page covers one exact OEM part number. Every unit we stocked has sold.

We may be able to get another

Used OEM parts are one-of-a-kind. We sometimes get another when we dismantle a matching vehicle, but we can’t say when — browse what’s in stock now:

Other Coolant Hose / Pipe / Line that may fit your vehicle

Engine Coolant Heater Tube / Line DX2318N348AE

Engine Coolant Heater Tube / Line

$69.99
Fits 2014–2020 Land Rover
OEM: DX2318N348AE
Used Only 1 left
  • Genuine OEM — real photos
  • 30-day returns on eligible parts
  • eBay Top Rated · 100,000+ positive ratings
  • Ships from our own indoor warehouse

This OEM Coolant Hose Assembly (LR013693) is a critical component in your Land Rover LR4, designed for years 2010 through 2014. Located within the engine coolant system, it facilitates the flow of coolant throughout the engine and radiator, helping to maintain optimal operating temperatures. A failing hose may lead to leakage or overheating, which can cause severe engine issues. This part interconnects with the water pump and thermostat, ensuring an efficient cooling cycle. Common signs of wear include cracks or bulging, necessitating replacement to prevent failure. As a verified OEM part, it guarantees compatibility and reliability for your vehicle’s performance.

Specifications

Specifications for Coolant Hose / Line Assembly AH228K534AC
Fits Vehicle ModelLR4
Fits Vehicle MakeLand Rover
OEM Part NoAH228K534AC
Compatible OEM Part No LR013693
CategoryRadiator / Coolant

Compatible Vehicles

Fits 5 vehicle configurations across 1 make, 2010-2014.

Check your specific vehicle before ordering. This list shows year, make, and model. Some years have multiple trims or engines that use different parts, and individual listings may have additional fitment notes (e.g. “with sunroof only”). Review the full variant list below, or message us with your VIN and we’ll confirm the match.

Land Rover

  • LR4 2010-2014 · 5 variants 1 with note
View all 5 vehicle configurations — 1 with fitment note
Full vehicle fitment list for Coolant Hose / Line Assembly AH228K534AC
Year Make Model Trim Engine Note
2010 Land Rover LR4 SUV 5.0L V8
2011 Land Rover LR4 SUV 5.0L V8
2012 Land Rover LR4 SUV 5.0L V8
2013 Land Rover LR4 SUV 5.0L V8
2014 Land Rover LR4 SUV 3.0L V6 Supercharged 3.0 liter, Hose & tube assy
