BMW Instrument Cluster Wiring Connector / Pigtail

Instrument Cluster Wiring Connector / Pigtail for BMW

This page covers one exact OEM part number. Every unit we stocked has sold.

We may be able to get another

Used OEM parts are one-of-a-kind. We sometimes get another when we dismantle a matching vehicle, but we can’t say when — browse what’s in stock now:

Other Dash Wire / Wiring Harness / Instrument Cluster / Speedometer / Misc Connector / Plug / Other / Misc Wire / Wiring Harness that may fit your vehicle

Genuine OEM — real photos
30-day returns on eligible parts
eBay Top Rated · 100,000+ positive ratings
Ships from our own indoor warehouse

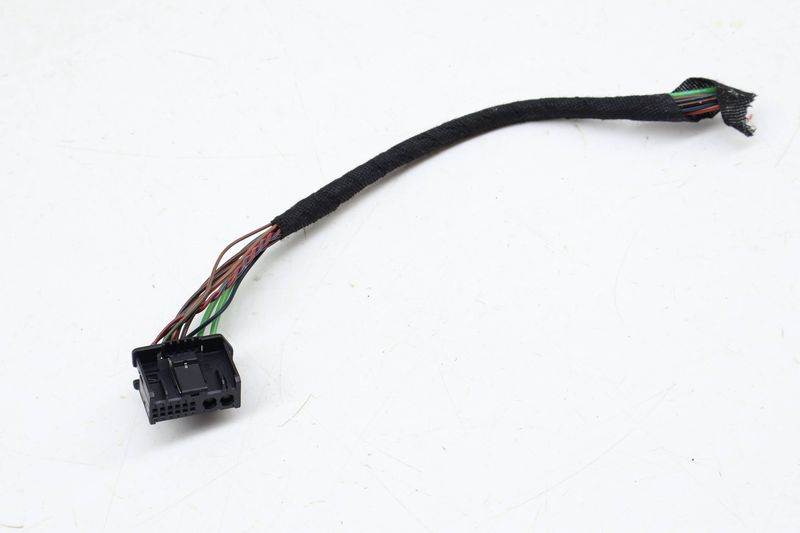

Ensure reliable communication within your vehicle's instrument cluster with this wiring connector/pigtail. Designed for BMW models including the 528i, 535i (both xDrive), 550i (xDrive), and X3 from 2010 to 2014, it efficiently connects vital electronic components. This part addresses issues such as poor connection or dashboard malfunction, and replaces faulty connectors that can impact instrument readings. Compatible OEM part numbers include 9285193, 9358979, 9291411, and others. Specifically fits models from 2010-2014, ensuring precise connectivity and enhancing stability of the instrument cluster function. Elevate your vehicle's electrical integrity with this essential component.

Specifications

Specifications for Instrument Cluster Wiring Connector / Pigtail
Fits Vehicle Model	528i, 528i xDrive, 535i, 535i GT, 535i xDrive, 550i, 550i GT, 550i GT xDrive, 550i xDrive, X3
Fits Vehicle Make	BMW
Compatible OEM Part No	9285193, 9358979, 9291411, 9285192, 9280480, 9276644, 9268306, 9265176, 9255586, 9249342, 9227605, 9225739, 9227611, 9225742, 9245448
Category	Wiring / Harness

Compatible Vehicles

Fits 30 vehicle configurations across 1 make, 2010-2014.

Check your specific vehicle before ordering. This list shows year, make, and model. Some years have multiple trims or engines that use different parts, and individual listings may have additional fitment notes (e.g. “with sunroof only”). Review the full variant list below, or message us with your VIN and we’ll confirm the match.

BMW

528i 2011-2013 · 3 variants 2 with notes
528i xDrive 2012-2013 · 2 variants 2 with notes
535i 2011-2013 · 3 variants 2 with notes
535i GT 2010-2011 · 2 variants 2 with notes
535i xDrive 2011-2013 · 3 variants 2 with notes
550i 2011-2013 · 3 variants 2 with notes
550i GT 2010-2011 · 2 variants 2 with notes
550i GT xDrive 2011 1 with note
550i xDrive 2011-2013 · 3 variants 2 with notes
X3 2011-2014 · 8 variants 4 with notes

View all 30 vehicle configurations — 21 with fitment notes

Full vehicle fitment list for Instrument Cluster Wiring Connector / Pigtail
Year	Make	Model	Trim	Engine	Note
2010	BMW	535i GT	Hatchback	3.0L l6 Turbo	For Vehicles With Production Date Up To 09/2010
2010	BMW	550i GT	Hatchback	4.4L V8 Turbo	For Vehicles With Production Date Up To 09/2010
2011	BMW	528i	Sedan	3.0L l6
2011	BMW	535i	Sedan	3.0L l6 Turbo
2011	BMW	535i GT	Hatchback	3.0L l6 Turbo	For Vehicles With Production Date Up To 09/2010
2011	BMW	535i xDrive	Sedan	3.0L l6 Turbo
2011	BMW	550i	Sedan	4.4L V8 Turbo
2011	BMW	550i GT	Hatchback	4.4L V8 Turbo	For Vehicles With Production Date Up To 09/2010
2011	BMW	550i GT xDrive	Hatchback	4.4L V8 Turbo	For Vehicles With Production Date Up To 09/2010
2011	BMW	550i xDrive	Sedan	4.4L V8 Turbo
2011	BMW	X3	SUV	3.0L l6
2011	BMW	X3	SUV	3.0L l6 Turbo
2012	BMW	528i	Sedan	2.0L l4 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2012	BMW	528i xDrive	Sedan	2.0L l4 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2012	BMW	535i	Sedan	3.0L l6 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2012	BMW	535i xDrive	Sedan	3.0L l6 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2012	BMW	550i	Sedan	4.4L V8 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2012	BMW	550i xDrive	Sedan	4.4L V8 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2012	BMW	X3	SUV	3.0L l6 Turbo
2012	BMW	X3	SUV	3.0L l6
2013	BMW	528i	Sedan	2.0L l4 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2013	BMW	528i xDrive	Sedan	2.0L l4 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2013	BMW	535i	Sedan	3.0L l6 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2013	BMW	535i xDrive	Sedan	3.0L l6 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2013	BMW	550i	Sedan	4.4L V8 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2013	BMW	550i xDrive	Sedan	4.4L V8 Turbo	For Vehicles with Production Date Between 03/2011 and 07/2013; For vehicles WITHOUT option code S6WBA
2013	BMW	X3	SUV	2.0L l4 Turbo	For Vehicles With Production Date Up To 08/2013
2013	BMW	X3	SUV	3.0L l6 Turbo	For Vehicles With Production Date Up To 08/2013
2014	BMW	X3	SUV	2.0L l4 Turbo	For Vehicles With Production Date Up To 08/2013
2014	BMW	X3	SUV	3.0L l6 Turbo	For Vehicles With Production Date Up To 08/2013
