BMW Instrument Cluster Wiring Plug Connector / Pigtail

Instrument Cluster Wiring Plug Connector / Pigtail for BMW

This page covers one exact OEM part number. Every unit we stocked has sold.

We may be able to get another

Used OEM parts are one-of-a-kind. We sometimes get another when we dismantle a matching vehicle, but we can’t say when — browse what’s in stock now:

Other Dash Wire / Wiring Harness / Instrument Cluster / Speedometer / Misc Connector / Plug / Other / Misc Wire / Wiring Harness that may fit your vehicle

Genuine OEM — real photos
30-day returns on eligible parts
eBay Top Rated · 100,000+ positive ratings
Ships from our own indoor warehouse

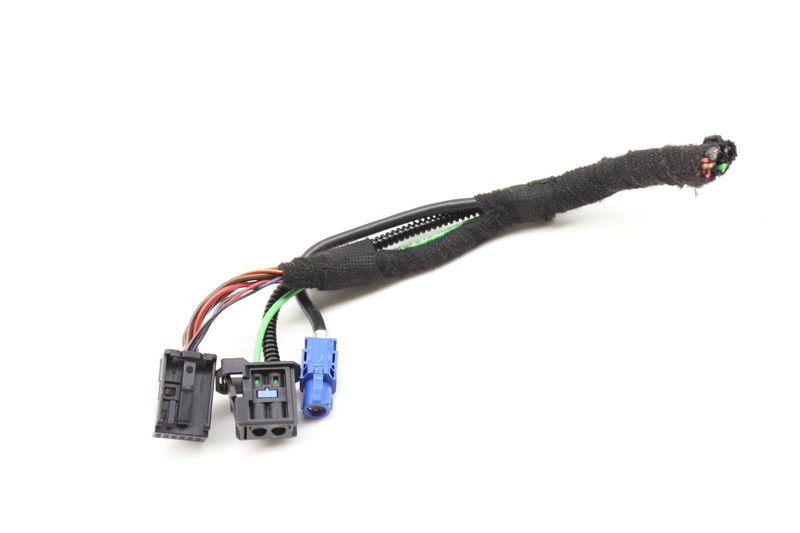

This used OEM BMW instrument cluster wiring plug connector/pigtail comes from a donor vehicle. Interchange numbers include 9436313, 8803216, and many others. It connects the instrument cluster to the car’s wiring harness; a damaged or loose pigtail can cause intermittent gauge failure or complete cluster power loss. Fits turbocharged 2.0L four-cylinder and 3.0L six-cylinder engines across numerous 3 and 4 Series models.

Specifications

Specifications for Instrument Cluster Wiring Plug Connector / Pigtail
Fits Vehicle Model	320i, 320i xDrive, 328i, 328i GT xDrive, 328i xDrive, 330e, 330i, 330i GT xDrive, 330i xDrive, 335i, 335i GT xDrive, 335i xDrive, 340i, 340i xDrive, 428i, 428i Gran Coupe, 428i xDrive, 428i xDrive Gran Coupe, 430i, 430i Gran Coupe, 430i xDrive, 430i xDrive Gran Coupe, 435i, 435i Gran Coupe, 435i xDrive, 435i xDrive Gran Coupe, 440i, 440i Gran Coupe, 440i xDrive, 440i xDrive Gran Coupe, ActiveHybrid 3
Fits Vehicle Make	BMW
Compatible OEM Part No	9436313, 8803216, 6847253, 6843150, 6834513, 6804982, 9382112, 9379990, 9363189, 9325227, 9311405, 9295869, 9285653, 9279342
Category	Wiring / Harness

Compatible Vehicles

Fits 90 vehicle configurations across 1 make, 2012-2017.

Check your specific vehicle before ordering. This list shows year, make, and model. Some years have multiple trims or engines that use different parts, and individual listings may have additional fitment notes (e.g. “with sunroof only”). Review the full variant list below, or message us with your VIN and we’ll confirm the match.

BMW

320i 2013-2017 · 5 variants 5 with notes
320i xDrive 2013-2017 · 5 variants 5 with notes
328i 2012-2016 · 5 variants 5 with notes
328i GT xDrive 2014-2016 · 3 variants 3 with notes
328i xDrive 2013-2016 · 7 variants 7 with notes
330e 2016-2017 · 2 variants 2 with notes
330i 2017 1 with note
330i GT xDrive 2017 1 with note
330i xDrive 2017 · 2 variants 2 with notes
335i 2012-2015 · 4 variants 4 with notes
335i GT xDrive 2014-2015 · 2 variants 2 with notes
335i xDrive 2013-2015 · 3 variants 3 with notes
340i 2016-2017 · 2 variants 2 with notes
340i xDrive 2016-2017 · 2 variants 2 with notes
428i 2014-2016 · 6 variants 6 with notes
428i Gran Coupe 2015-2016 · 2 variants 2 with notes
428i xDrive 2014-2016 · 6 variants 6 with notes
428i xDrive Gran Coupe 2015-2016 · 2 variants 2 with notes
430i 2017 · 2 variants 2 with notes
430i Gran Coupe 2017 1 with note
430i xDrive 2017 · 2 variants 2 with notes
430i xDrive Gran Coupe 2017 1 with note
435i 2014-2016 · 6 variants 6 with notes
435i Gran Coupe 2015-2016 · 2 variants 2 with notes
435i xDrive 2014-2016 · 5 variants 5 with notes
435i xDrive Gran Coupe 2015-2016 · 2 variants 2 with notes
440i 2017 · 2 variants 2 with notes
440i Gran Coupe 2017 1 with note
440i xDrive 2017 · 2 variants 2 with notes
440i xDrive Gran Coupe 2017 1 with note
ActiveHybrid 3 2013-2015 · 3 variants 3 with notes

View all 90 vehicle configurations — 90 with fitment notes

Full vehicle fitment list for Instrument Cluster Wiring Plug Connector / Pigtail
Year	Make	Model	Trim	Engine	Note
2012	BMW	328i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2012	BMW	335i	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	320i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	320i xDrive	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	328i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	328i xDrive	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	335i	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	335i xDrive	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	320i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	320i xDrive	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	328i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	328i GT xDrive	Hatchback	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	328i xDrive	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	328i xDrive	Wagon	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	335i	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	335i GT xDrive	Hatchback	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	335i xDrive	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	428i	Convertible	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	428i	Coupe	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	428i xDrive	Convertible	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	428i xDrive	Coupe	2.0L l4 Turbo	With N26 SULEV Engine; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	435i	Convertible	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	435i	Coupe	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	435i xDrive	Coupe	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	320i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	320i xDrive	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	328i	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	328i GT xDrive	Hatchback	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	328i xDrive	Sedan	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	328i xDrive	Wagon	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	335i	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	335i GT xDrive	Hatchback	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	335i xDrive	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	428i	Convertible	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	428i	Coupe	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	428i Gran Coupe	Hatchback	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	428i xDrive	Convertible	2.0L l4 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	428i xDrive	Coupe	2.0L l4 Turbo	With N26 SULEV Engine; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	428i xDrive Gran Coupe	Hatchback	2.0L l4 Turbo	With N26 SULEV Engine; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	435i	Convertible	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	435i	Coupe	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	435i Gran Coupe	Hatchback	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	435i xDrive	Convertible	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	435i xDrive	Coupe	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	435i xDrive Gran Coupe	Hatchback	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	320i	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	320i xDrive	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	328i	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	328i GT xDrive	Hatchback	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	328i xDrive	Sedan	2.0L l4 Turbo	With N26 SULEV Engine; For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	328i xDrive	Wagon	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	340i	Sedan	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	340i xDrive	Sedan	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	428i	Convertible	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	428i	Coupe	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	428i Gran Coupe	Hatchback	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	428i xDrive	Convertible	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	428i xDrive	Coupe	2.0L l4 Turbo	With N26 SULEV Engine; For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	428i xDrive Gran Coupe	Hatchback	2.0L l4 Turbo	With N26 SULEV Engine; For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	435i	Convertible	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	435i	Coupe	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	435i Gran Coupe	Hatchback	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	435i xDrive	Convertible	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	435i xDrive	Coupe	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	435i xDrive Gran Coupe	Hatchback	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	320i	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	320i xDrive	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	330i	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	330i GT xDrive	Hatchback	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	330i xDrive	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	330i xDrive	Wagon	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	340i	Sedan	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	340i xDrive	Sedan	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	430i	Convertible	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	430i	Coupe	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	430i Gran Coupe	Hatchback	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	430i xDrive	Convertible	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	430i xDrive	Coupe	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	430i xDrive Gran Coupe	Hatchback	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	440i	Convertible	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	440i	Coupe	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	440i Gran Coupe	Hatchback	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	440i xDrive	Convertible	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	440i xDrive	Coupe	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	440i xDrive Gran Coupe	Hatchback	3.0L l6 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2013	BMW	ActiveHybrid 3	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2014	BMW	ActiveHybrid 3	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2015	BMW	ActiveHybrid 3	Sedan	3.0L l6 Turbo	For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2016	BMW	330e	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
2017	BMW	330e	Sedan	2.0L l4 Turbo	For Vehicles With Production Date Up To 07/2016; For vehicles WITH option codes P337A, P7ACA, P7B1A AND P7B3A
