Audi A3 8P Sunroof Motor Removal

• Estimated time: 0.1h
• Estimated cost: $79.99
• Applicable models: Audi A3 8P (2006-2012)
• Tools used:
  • Flat-head Screw Driver
  • Phillips-head Screw Driver
  • #2 Razor Blade
  • Torx bit 25 (T-25)
• Parts used:
  • Dome Light 8E0947135B
  • SUNROOF / SUN ROOF MOTOR 4L0959591

In this article we will go through the steps on how to remove the dome light housing and sunroof motor from your 2007 Audi A3. This process is pretty simple and should only take 10-15 minutes. If you find this article useful, please share it.

Procedure

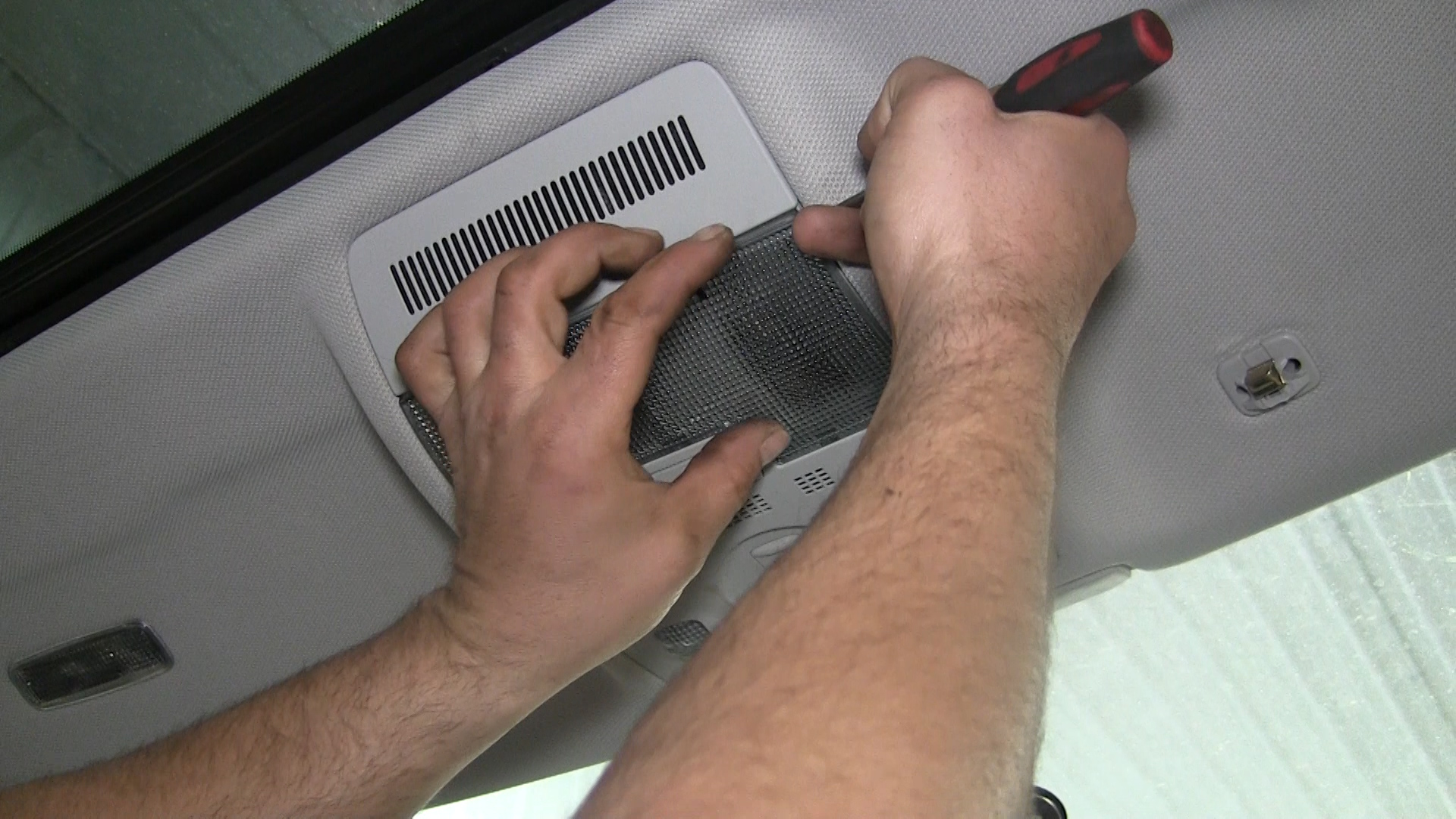

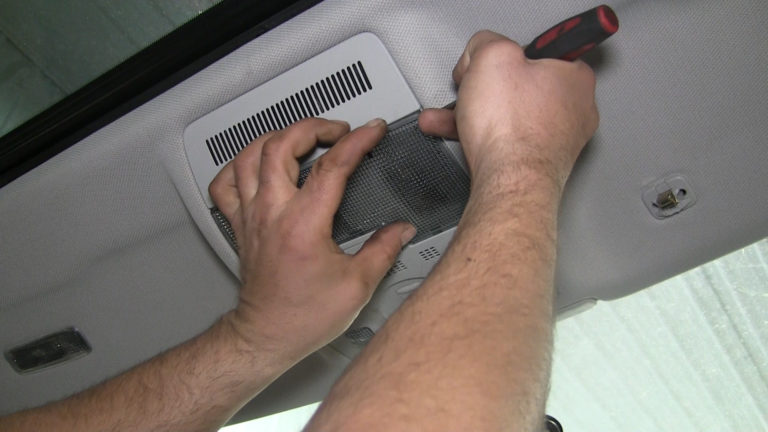

1. Step 1: First thing, if you are just replacing the dome lights, just remove the clear plastic cover. The lights should be able to be removed pretty easily.

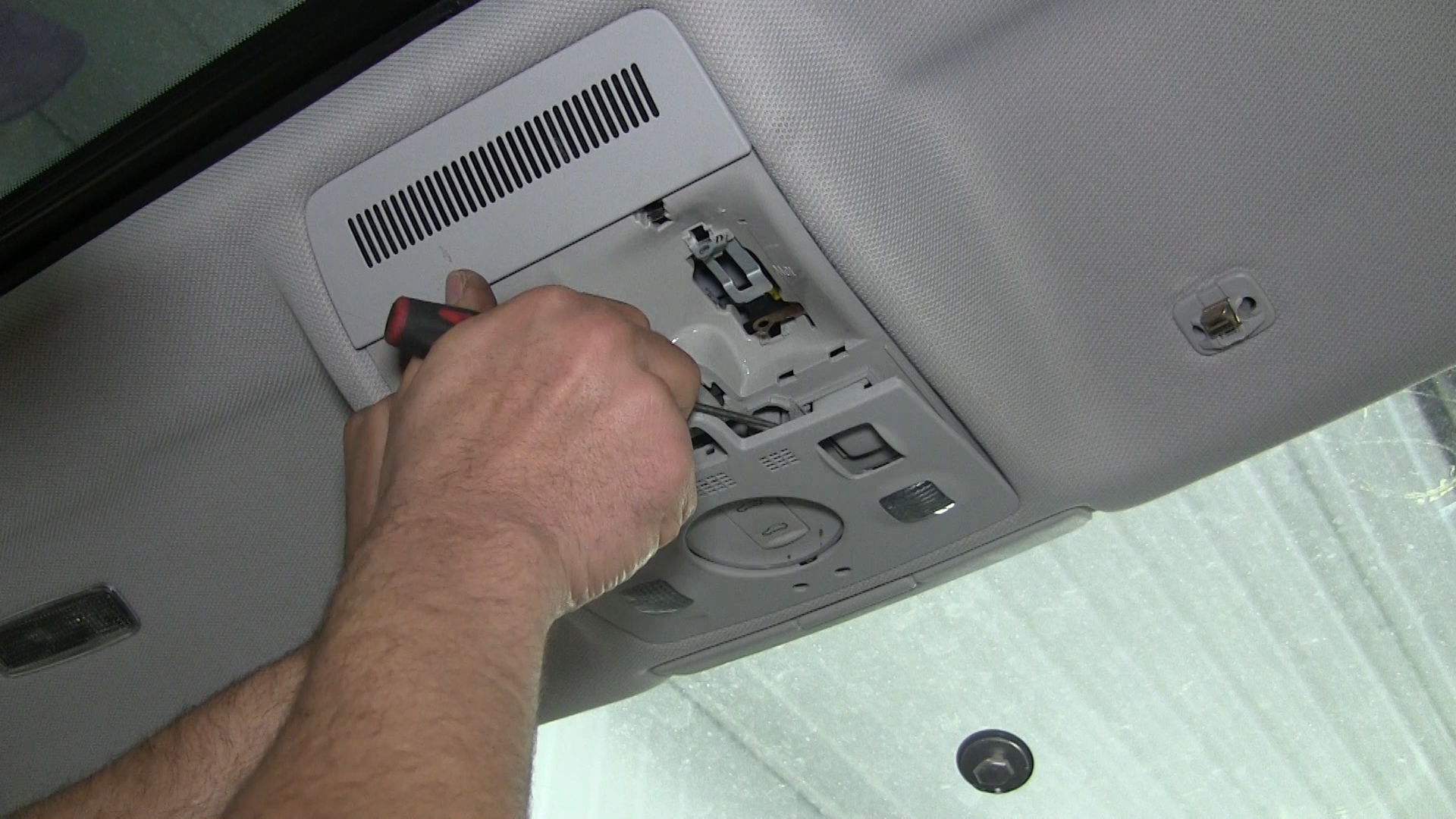

2. Step 2: If the buttons need to be replaced, or if you need to get access to the sunroof motor, remove the plastic tray that covers the switches. Place a flat-head screwdriver near the sunroof switch, and gently pry the plastic off from the clips, and pull straight down.

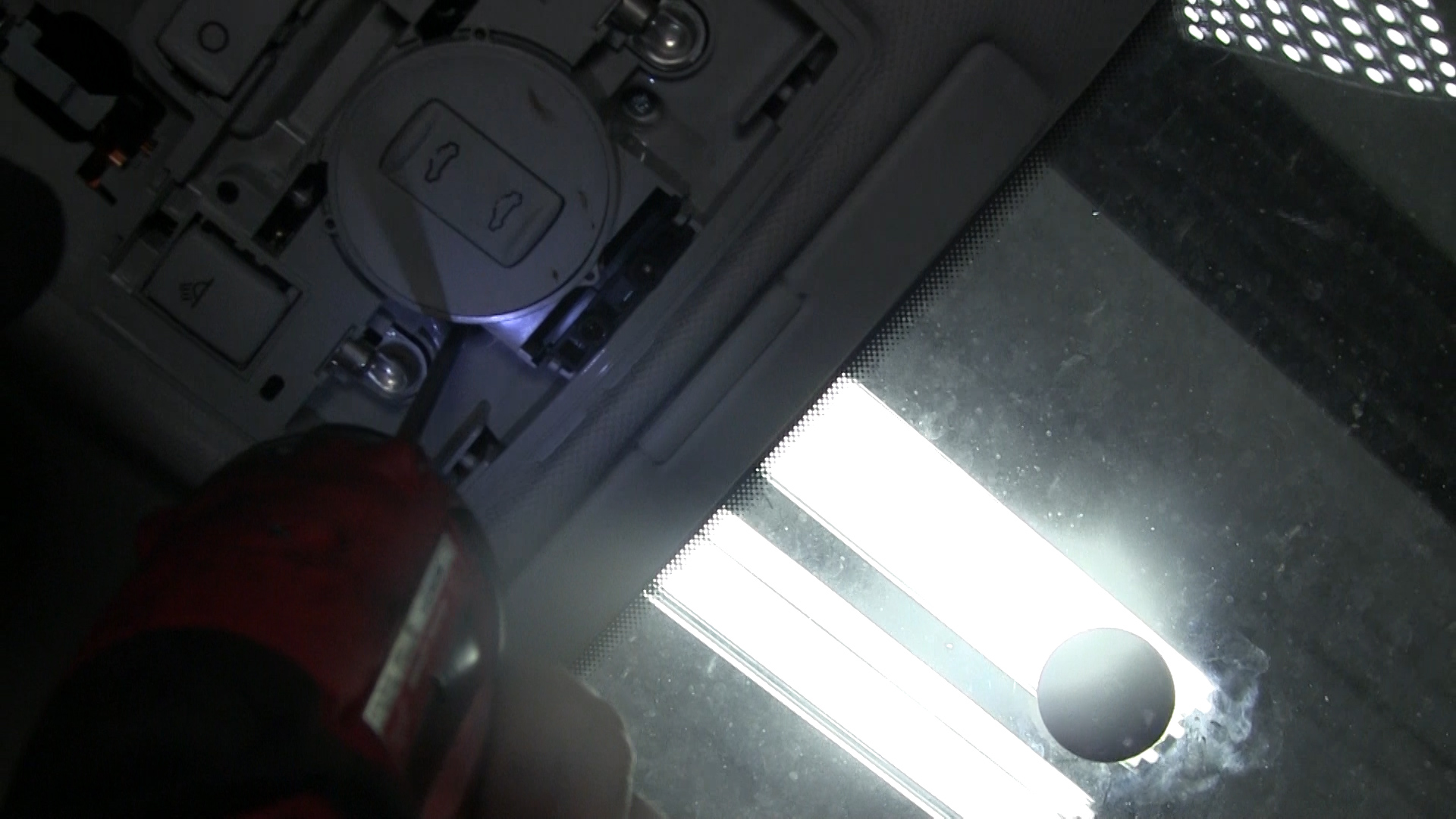

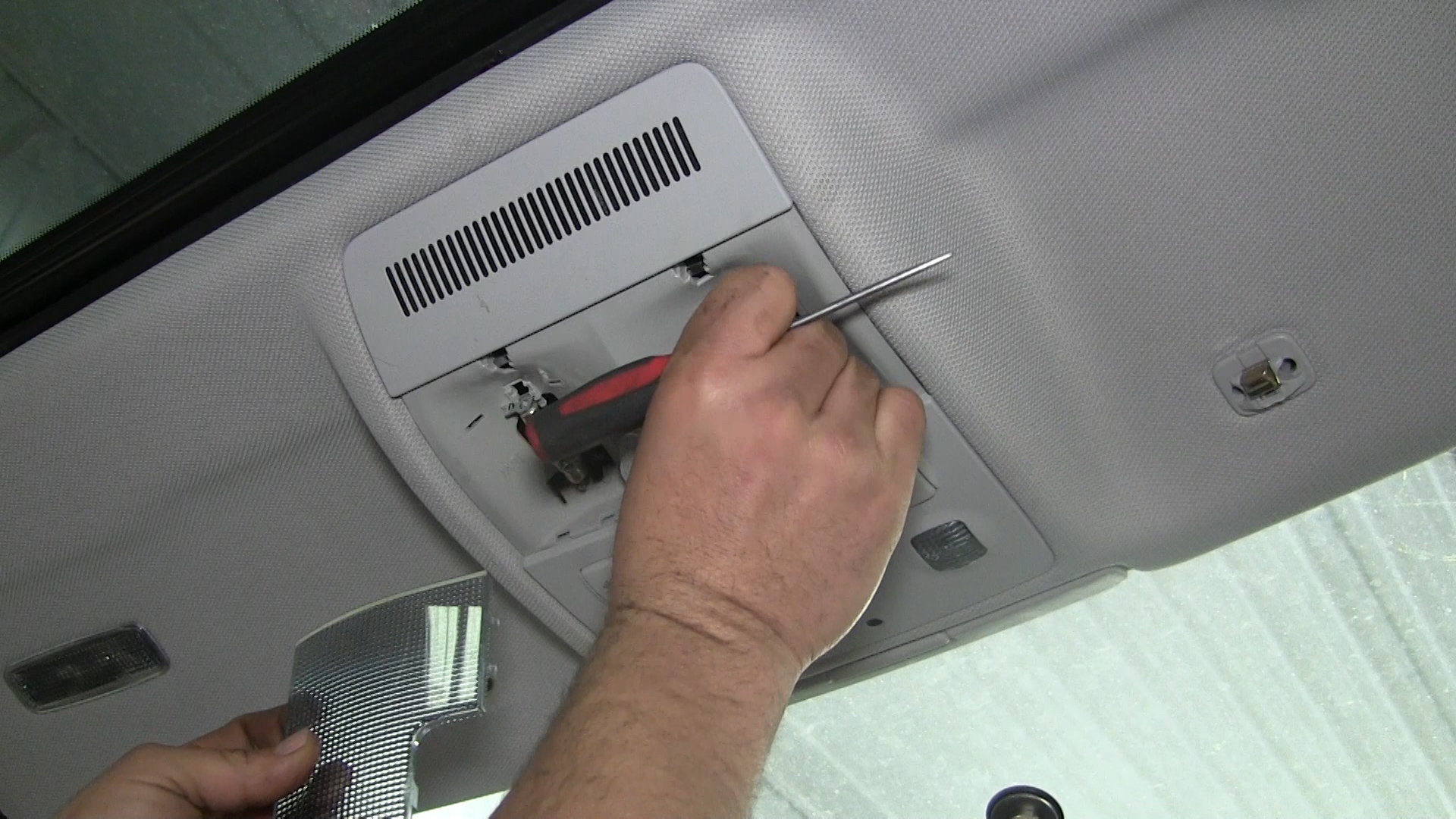

   Once the plate is removed, use a Phillips-head screwdriver to remove the two screws in the housing.

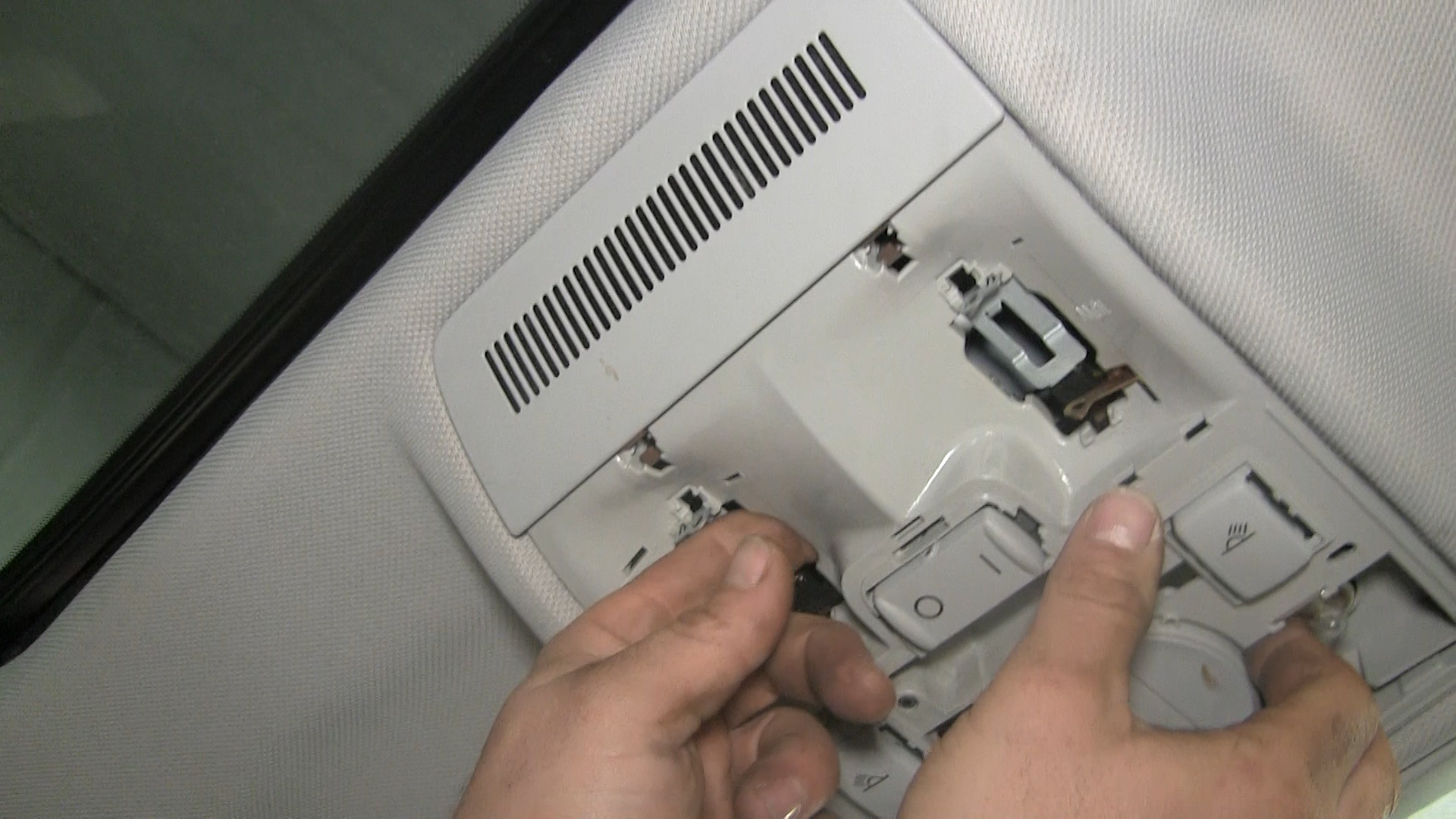

3. Step 3: Place your fingers in the holes where the dome lights went, and gently pull straight down.

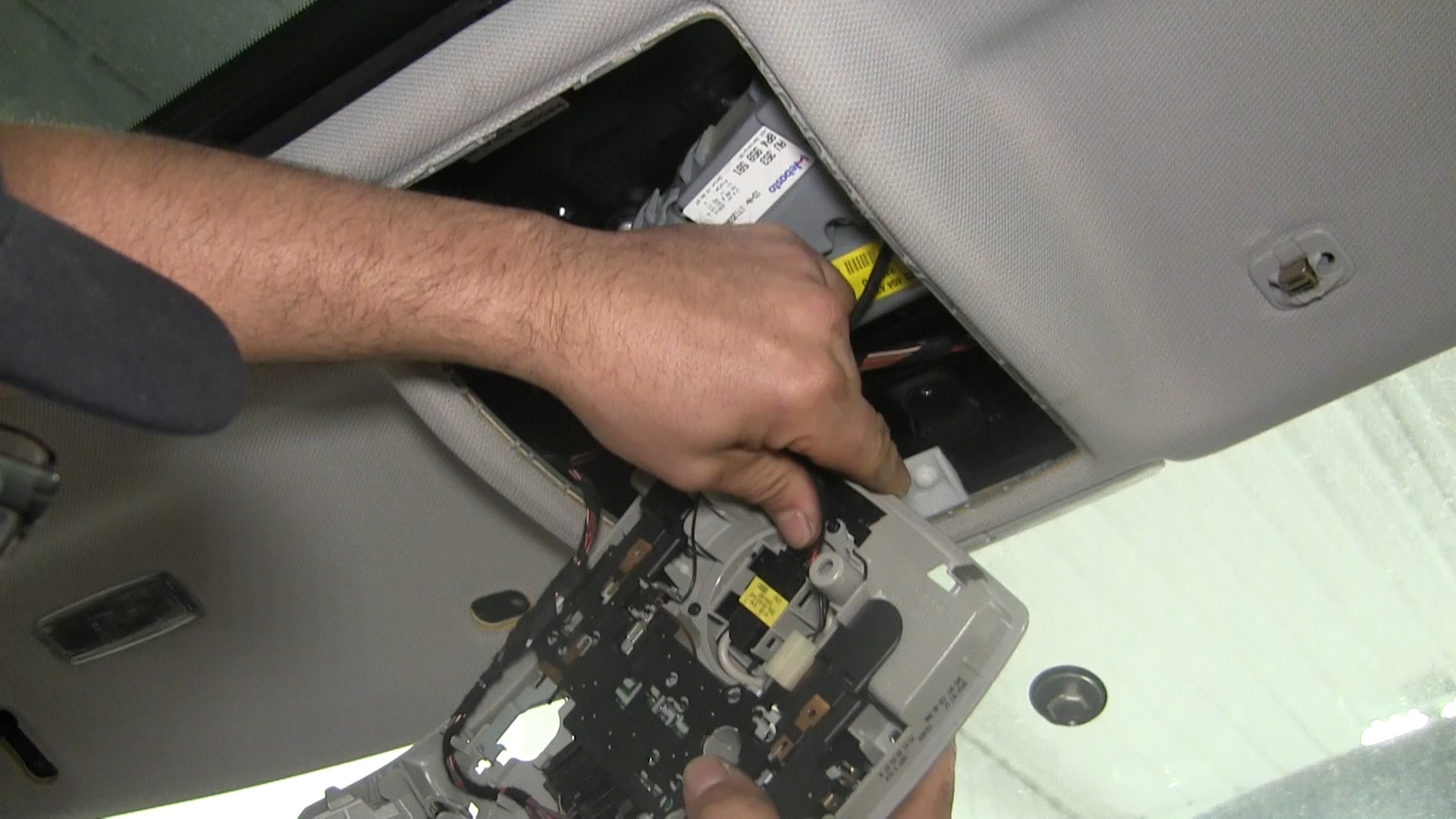

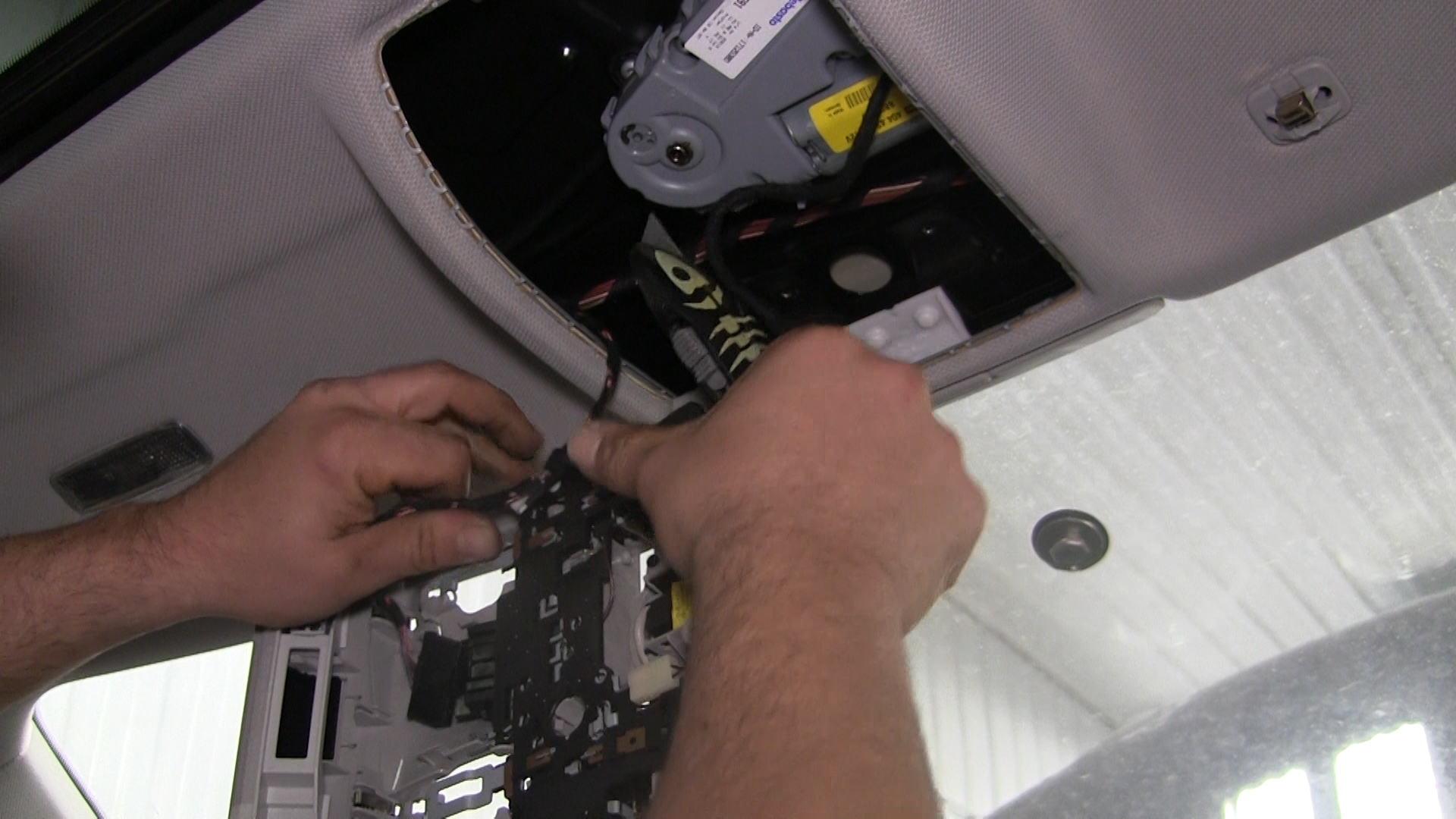

   Remove the wiring harness. The plastic connectors should be easy to remove. There is a strap that holds a part on that will have to be carefully cut. 🙂

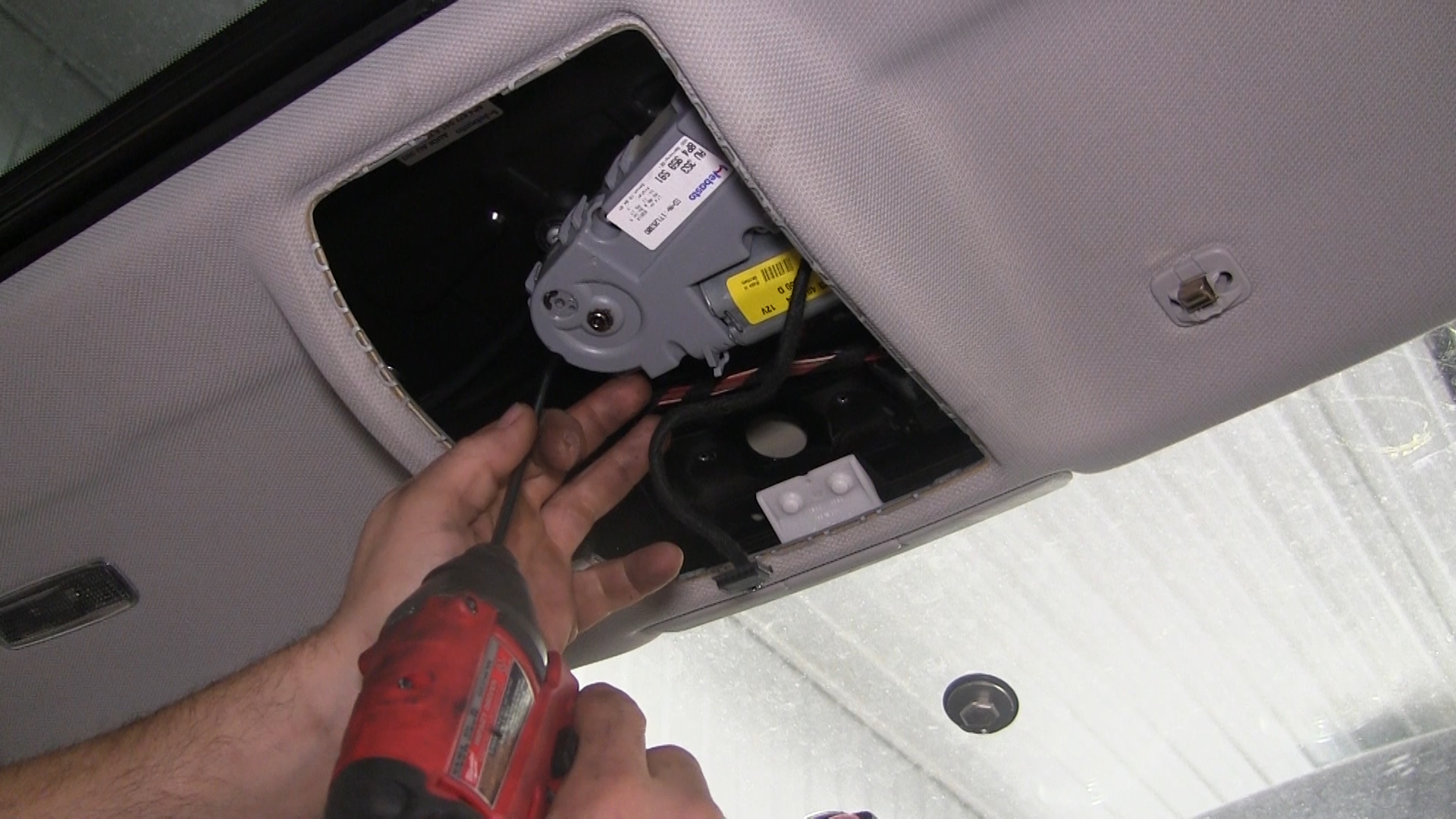

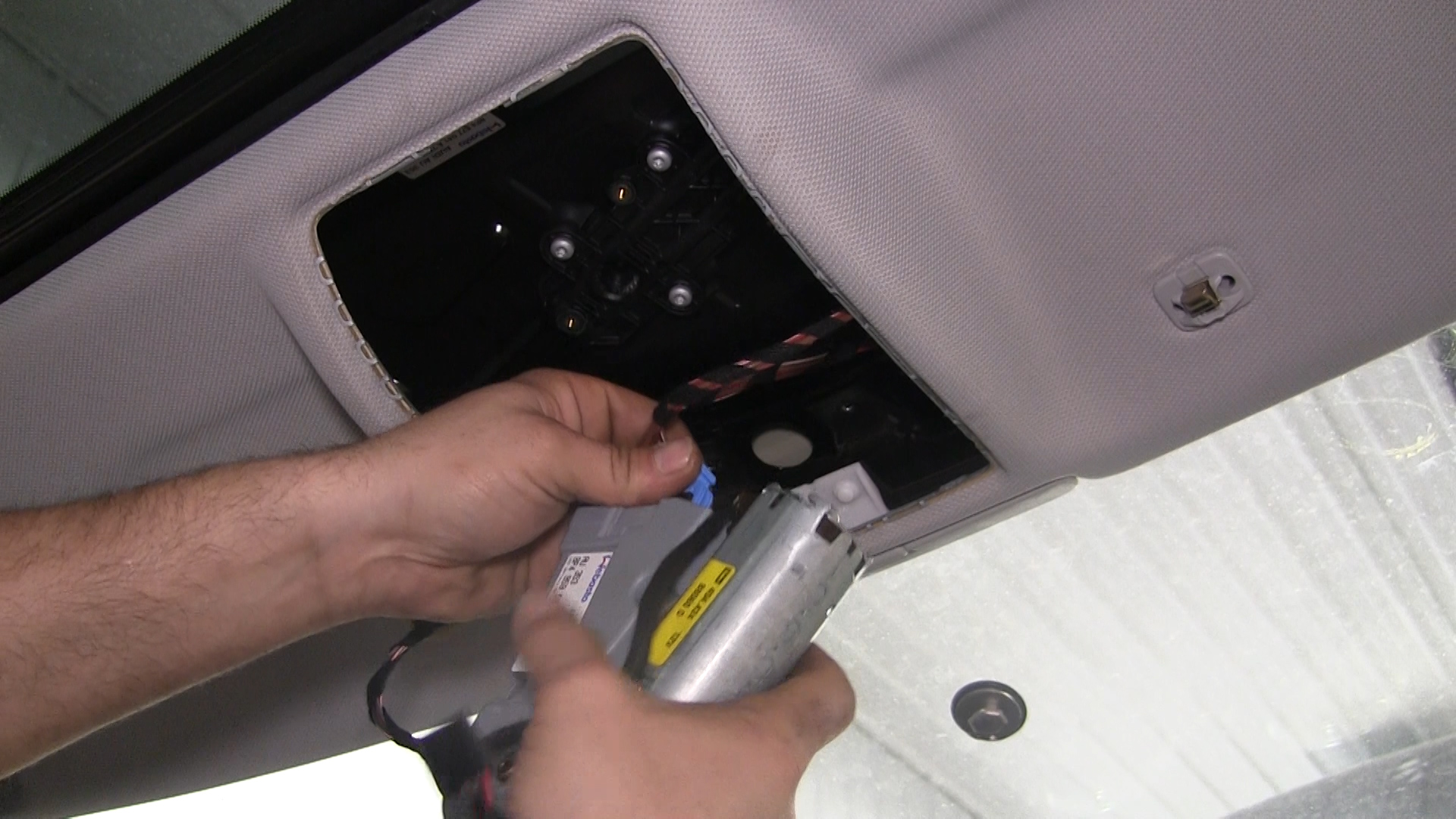

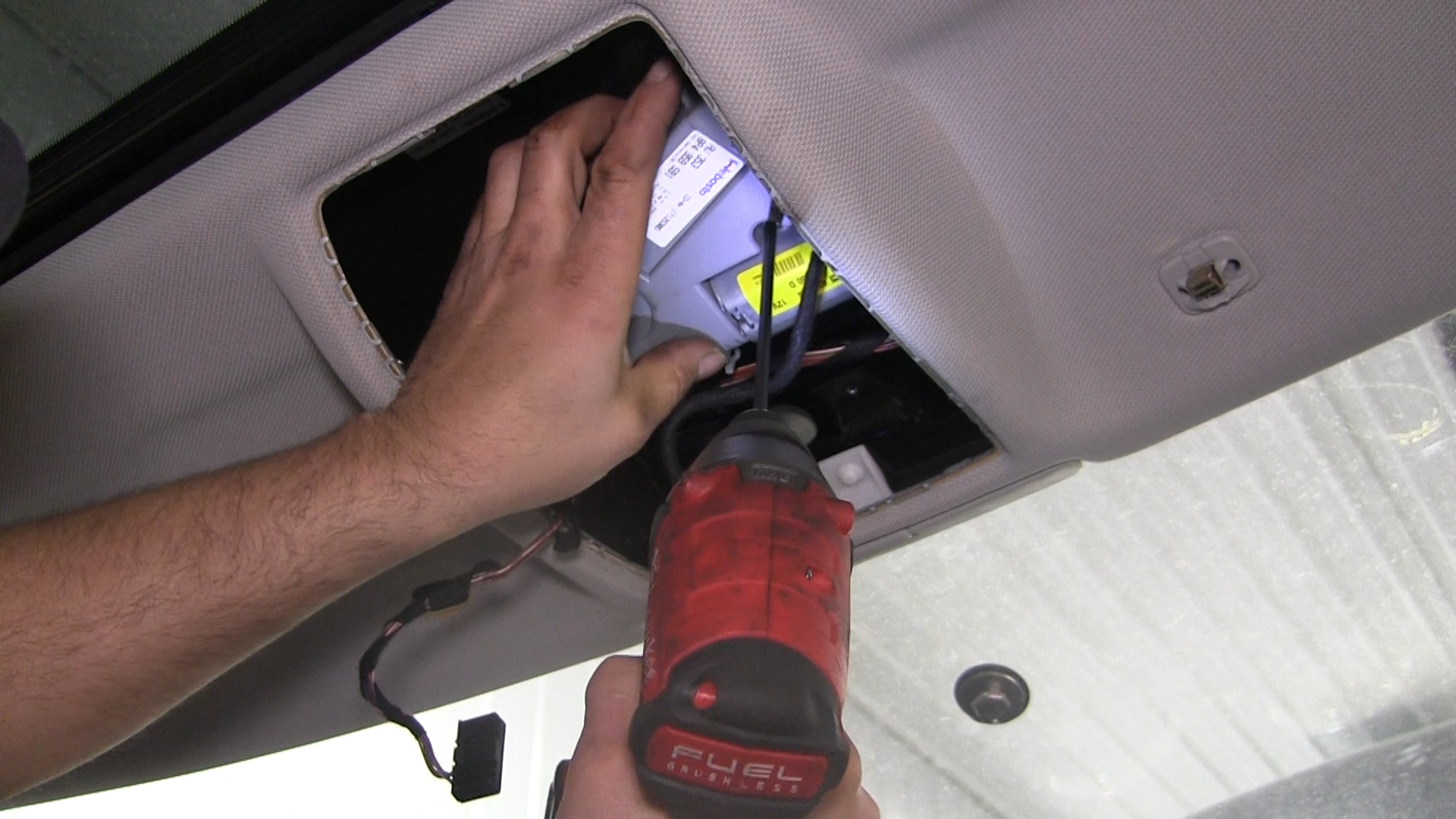

4. Step 4: Remove the 3 Torx-25 from the Sunroof Motor. Remove the wiring harness from the motor.

   To replace, do everything in reverse order.
