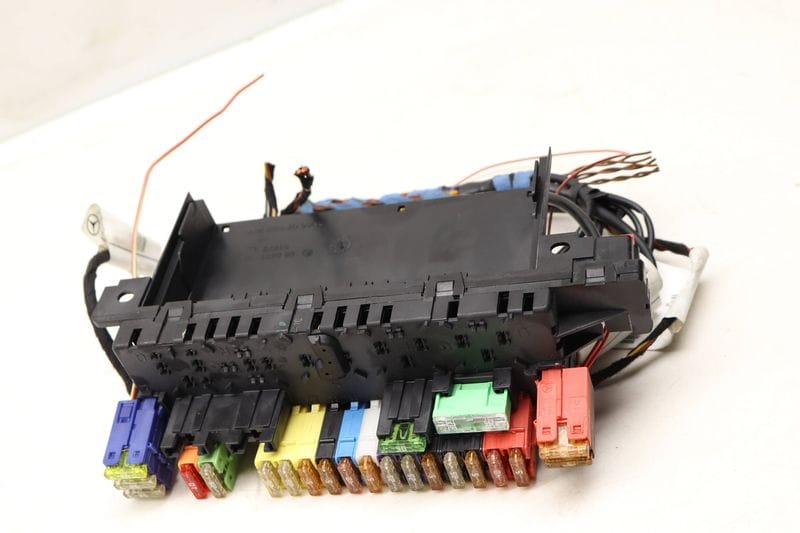

2002-2012 Mercedes-Benz Relay / Fuse Box Rear 2305450401
OEM Part #: 230-545-04-01 (2305450401)
Actual photo
The exact part you’ll receive — not a stock photo.
$36.49
Side: Rear
Used
Donor2012 Mercedes-Benz SL550 · 5.5L · 83k miles
✓ Free Same Day Shipping on orders by noon CT
Only 1 in stock — no guaranteed restock
Genuine OEM Used
SKU: 497687
Donor Vehicle: 2012 Mercedes-Benz SL550 · 5.5L · 83k miles
3 photos
$36.49
30-Day Returns
- Genuine OEM — real photos
- 30-day returns on eligible parts
- eBay Top Rated · 100,000+ positive ratings
- Ships from our own indoor warehouse
A used Mercedes-Benz rear relay/fuse box, OEM part number 2305450401, from a donor vehicle. This is the genuine Mercedes part that houses and distributes power through multiple electrical circuits in the rear of the vehicle. When a relay or fuse fails in this box, you may experience a loss of power to specific systems like the convertible top, battery charging, or interior accessories. It was removed from one of several R230 and R231 chassis models, including the SL500, SL550, SL55 AMG, SL600, SL63 AMG, and SL65 AMG.
Specifications
| Fits Vehicle Model | SL500, SL55 AMG, SL550, SL600, SL63 AMG, SL65 AMG |
| Fits Vehicle Make | Mercedes-Benz |
| OEM Part No | 230-545-04-01 (2305450401) |
| Side | Rear |
| Category | Relay / Fuse |
Compatible Vehicles
Fits 31 vehicle configurations across 1 make, 2002-2012.
Check your specific vehicle before ordering.
This list shows year, make, and model. Some years have multiple trims or
engines that use different parts, and individual listings may have
additional fitment notes (e.g. “with sunroof only”). Review
the full variant list below, or
message us with your VIN
and we’ll confirm the match.
View all 31 vehicle configurations
| Year | Make | Model | Trim | Engine | Note |
|---|---|---|---|---|---|
| 2006 | Mercedes-Benz | SL55 AMG | Convertible | 5.5L V8 Supercharged | |
| 2002 | Mercedes-Benz | SL500 | Convertible | 5.0L V8 | |
| 2004 | Mercedes-Benz | SL600 | Convertible | 5.5L V12 Turbo | |
| 2005 | Mercedes-Benz | SL600 | Convertible | 5.5L V12 Turbo | |
| 2006 | Mercedes-Benz | SL600 | Convertible | 5.5L V12 Turbo | |
| 2007 | Mercedes-Benz | SL600 | Convertible | 5.5L V12 Turbo | |
| 2008 | Mercedes-Benz | SL600 | Convertible | 5.5L V12 Turbo | |
| 2009 | Mercedes-Benz | SL600 | Convertible | 5.5L V12 Turbo | |
| 2005 | Mercedes-Benz | SL65 AMG | Convertible | 6.0L V12 Turbo | |
| 2006 | Mercedes-Benz | SL65 AMG | Convertible | 6.0L V12 Turbo | |
| 2007 | Mercedes-Benz | SL65 AMG | Convertible | 6.0L V12 Turbo | |
| 2008 | Mercedes-Benz | SL65 AMG | Convertible | 6.0L V12 Turbo | |
| 2009 | Mercedes-Benz | SL65 AMG | Convertible | 6.0L V12 Turbo | |
| 2011 | Mercedes-Benz | SL65 AMG | Convertible | 6.0L V12 Turbo | |
| 2009 | Mercedes-Benz | SL63 AMG | Convertible | 6.3L V8 | |
| 2011 | Mercedes-Benz | SL63 AMG | Convertible | 6.3L V8 | |
| 2012 | Mercedes-Benz | SL63 AMG | Convertible | 6.3L V8 | |
| 2006 | Mercedes-Benz | SL500 | Convertible | 5.0L V8 | |
| 2007 | Mercedes-Benz | SL550 | Convertible | 5.5L V8 | |
| 2008 | Mercedes-Benz | SL550 | Convertible | 5.5L V8 | |
| 2011 | Mercedes-Benz | SL550 | Convertible | 5.5L V8 | |
| 2012 | Mercedes-Benz | SL550 | Convertible | 5.5L V8 | |
| 2007 | Mercedes-Benz | SL55 AMG | Convertible | 5.5L V8 Supercharged | |
| 2008 | Mercedes-Benz | SL55 AMG | Convertible | 5.5L V8 Supercharged | |
| 2009 | Mercedes-Benz | SL550 | Convertible | 5.5L V8 | |
| 2003 | Mercedes-Benz | SL55 AMG | Convertible | 5.5L V8 Supercharged | |
| 2004 | Mercedes-Benz | SL55 AMG | Convertible | 5.5L V8 Supercharged | |
| 2005 | Mercedes-Benz | SL55 AMG | Convertible | 5.5L V8 Supercharged | |
| 2003 | Mercedes-Benz | SL500 | Convertible | 5.0L V8 | |
| 2004 | Mercedes-Benz | SL500 | Convertible | 5.0L V8 | |
| 2005 | Mercedes-Benz | SL500 | Convertible | 5.0L V8 |
